|Frequency:||UHF VHF GSM 3G 4G||Source:||Digital|
|Type:||For Vehicle Convoy||Application:||Force Protection|

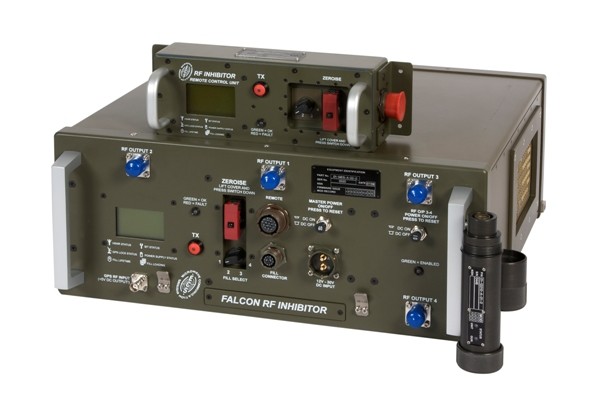

Low Band GSM VHF / UHF Digital Convoy bomb jammer RCIED bomb Jammers
Frequency Coverage: VHF / UHF bands; Low Band GSM, High Band GSM and UMTS 2100 Band.
Power Supply: 24 - 30 VDC Power consumption 700 W nominal (all channels operational). Power can be drawn from an additional 24 VDC alternator and separate batteries or, an (optional) mains supply
Operational Temperature: -10°C to +55°C
Operational Humidity: Up to 95% relative humidity, non condensing
RF Power Out: Total composite RF power output:140 W +/- 3 dB at 24 VDC supply and an ambient temperature of 22°C from the Falcon Plus equipment into 50 Ω loads.
The power may vary outside this range if operated under other conditions
Dimensions: 180 x 450 x 450 mm not including connectors, base plate and mounts
Weight: 30kg (approx) not including antennas
Shock and Vibration: DEF STAN 00-35
FALCON PLUS can be utilised in the following roles:

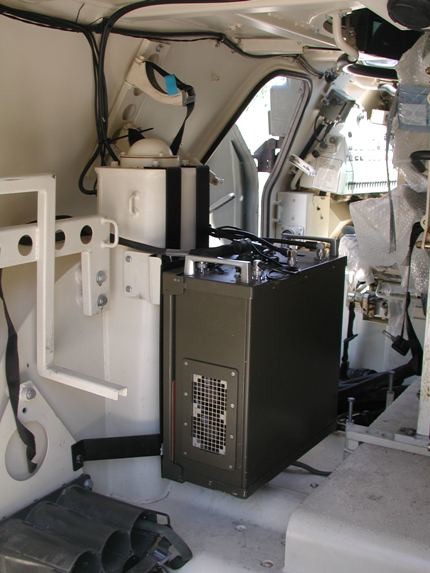

Falcon Plus is available with a unique vehicle antenna system designed to cover the VHF, UHF, GSM and 3G bands. ECS is able to design and test bespoke ground plane antenna systems based on the Customer’s own vehicle in order to optimise antenna performance. ECS can provide a user-friendly Portable Test Set unit for in-theatre testing of Falcon Plus equipment.
