High Power 868W Convoy Bomb Jammer Fully Integrated Broadband Jamming System

I'm Online Chat Now

High Power 868W Convoy Bomb Jammer Fully Integrated Broadband Jamming System

China High Power 868W Convoy Bomb Jammer Fully Integrated Broadband Jamming System supplier
High Power 868W Convoy Bomb Jammer Fully Integrated Broadband Jamming System supplier High Power 868W Convoy Bomb Jammer Fully Integrated Broadband Jamming System supplier

Large Image :  High Power 868W Convoy Bomb Jammer Fully Integrated Broadband Jamming System

Product Details:

Place of Origin: China
Brand Name: SHYT

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Delivery Time: 60 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50pcs/month
Contact Now
Detailed Product Description
Frequency: 20~50Mhz 135-175MHz 310-350MHz 400-480MHz 800-850MHz Frequency 2: 850-895MHz 925-960MHz 1520-1580MHz 1805-1990MHz
Frequency 3: 2110-2170MHz 2400-2500MHz Power: 868W
Total System Weight: Approx.180kg

868W convoy bomb jammer frequency for 20~50Mhz 135-175 310-350 400-480 Fully Integrated Broad Band Jamming System





Specification:

  • RF Frequency Band ( MHz ):
  • RF Output Power( Watt )
  • -20-30MHz/Radio Control Toys, Analog phones&Alarms/45W
  • -30-50MHz/Radio Control Toys, Analog phones&Alarms/45W
  • -135-175MHz/Walky-talky ( VHF )/55W
  • -310-350MHz/Walky-talky ( UHF300 )/55W
  • -400-480MHz/Walky-talky ( UHF 350 )/55W
  • -800-850MHz/Walky-Talky(UHF700/800), TETRA/100W
  • -850-895MHz/Cellular CDMA/TDMA,alky-Talky ( UHF800/900 )/120W
  • -925-960MHz/Cellular GSM900/120W
  • -1520-1580MHz/GPS & Satellite; Thuraya; Iridium; Odyssey; GlobalStar; Inmarsat; Aces; Elipso/45W
  • -1805-1990MHz/Cellular HGSM1800/ DCS,Cellular GSM1900/ PCS (+ PHS )/100W
  • -2110-2170MHz/Cellular UMTS / WCDMA ( 3G )/100W
  • -2400-2500MHz/WLAN & Bluetooth & Wifi/28W
  • Total RF Power:868 Watt
  • Antenna Type:High Gain Omnidirectional Antennas
  • Power Supply Source:Additional AC Generator ( 5000W)
  • Total Power Consumption ( +28VDC ):Max 7000VA
  • Total System Weight: Approx.180kg
  • Operating Temperature Range:-20Ċ…+50ĊOperating Humidity:Up to 80%

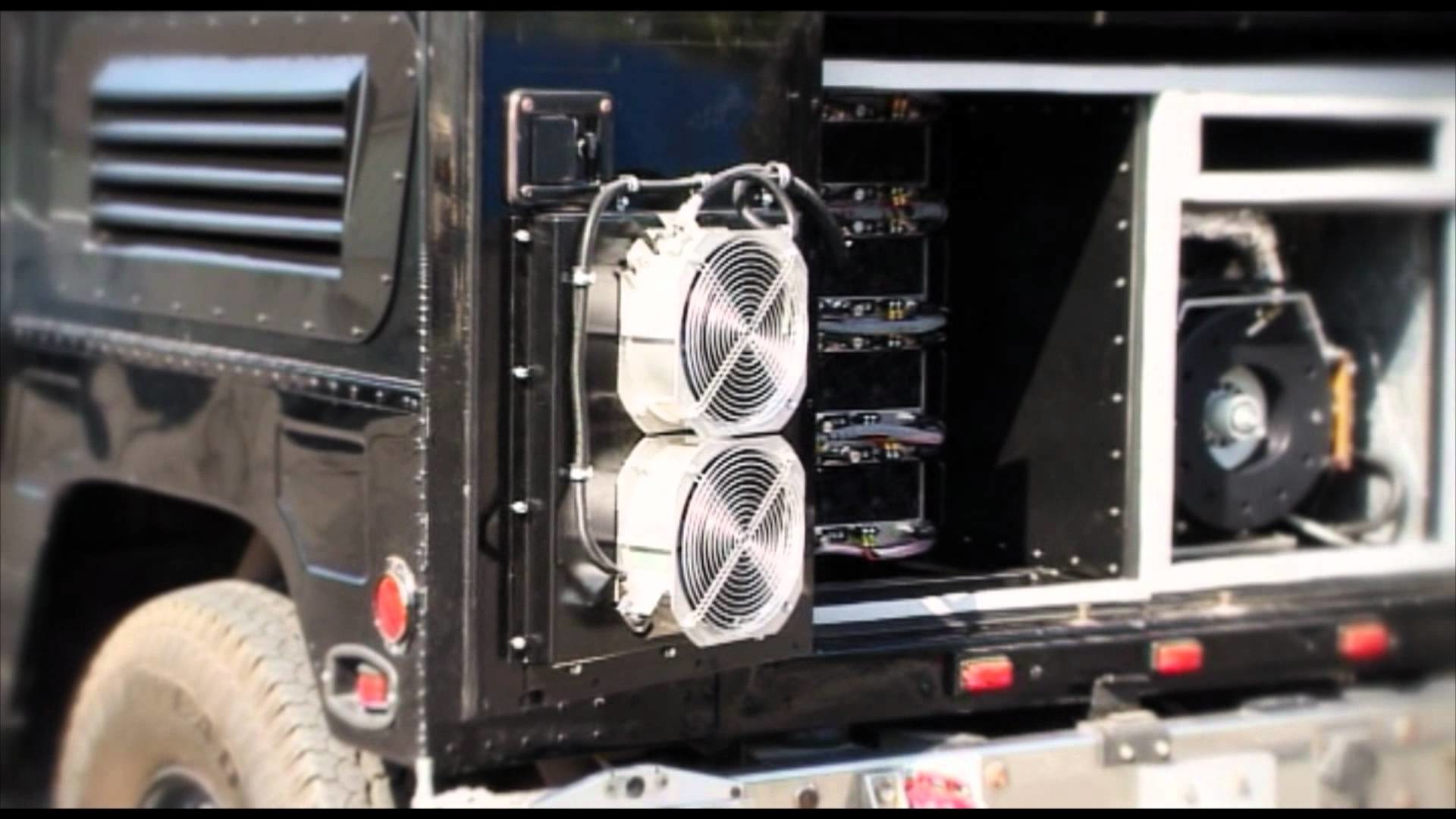

High Power 868W Fully Integrated Broad Band Jamming System , it’s specially customized to accommodate a fully integrated broad band jamming system which provides the ultimate solution for Military and Police convoys or VIP protection.
