Digital Source IED Convoy Bomb Jammer Roof Mounted 20-6000Mhz Frequency

I'm Online Chat Now

Digital Source IED Convoy Bomb Jammer Roof Mounted 20-6000Mhz Frequency

China Digital Source IED Convoy Bomb Jammer Roof Mounted 20-6000Mhz Frequency supplier
Digital Source IED Convoy Bomb Jammer Roof Mounted 20-6000Mhz Frequency supplier Digital Source IED Convoy Bomb Jammer Roof Mounted 20-6000Mhz Frequency supplier

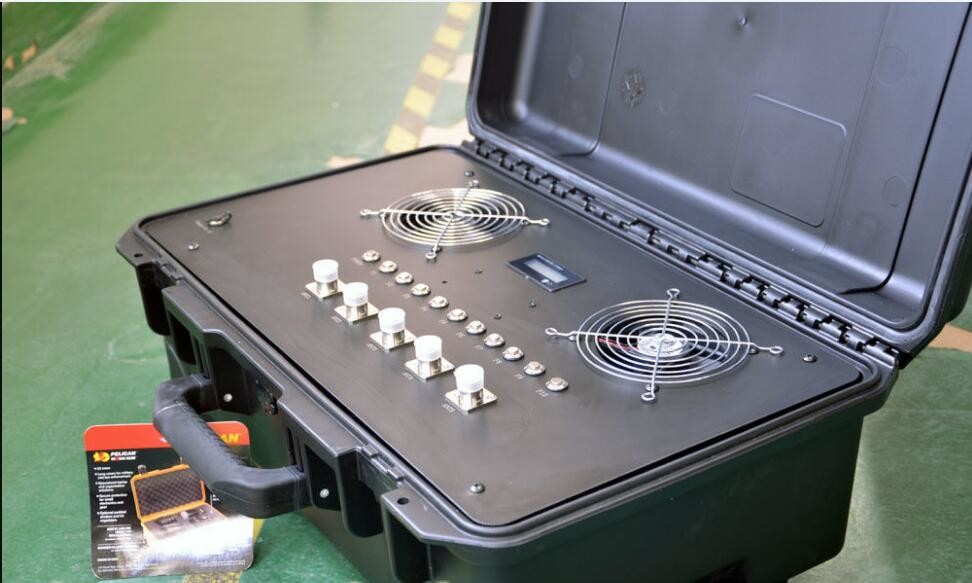

Large Image :  Digital Source IED Convoy Bomb Jammer Roof Mounted 20-6000Mhz Frequency

Product Details:

Place of Origin: China
Brand Name: SHYT
Model Number: BJ206000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 6 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Signal Source: Digital Source Frequency: 20~6000Mhz
Effective Range (radius): ≥150meter(radius) Antenna: 8 Pcs



Digital Source IED Convoy Bomb Jammer Roof Mounted 20-6000Mhz Frequency



Digital IED Jammer Cover full frequency 20~100MHz full 136~174MHz full 230~520MHz full and all Mobile wifi frequency include 5800Mhz wifi signal used digital technology stably and long range very small size can backpack we can accept test in China

VCO technology or DDS can’t cover so wide bands or only can block a point but digital can block a wide range and very good Effect (all bands working in the same time )



Digital Source IED Convoy Bomb Jammer Roof Mounted 20-6000Mhz Frequency



Technical specification for portable IED Jammer
  specification Requirement Remarks
1 Frequency 20~100MHz full
    136~174MHz full
    230~520MHz full
    CDMA450
    CDMA800/ GSM900
    GSM1800/CDMA1900/4G
    WCDMA/4G
    2.4G WIFI
    5.8G WIFI
2 signal source Digital source
3 Transmitted power 47±2dBm@20~80MHz Port output power
    47±2dBm@136~174MHz
    47±2dBm@230~520MHz
    47±2dBm@ CDMA450
    46±2dBm@ CDMA800/ GSM900
    46±2dBm@ GSM1800/CDMA1900/4G
    46±2dBm@ WCDMA/4G


40±2dBm@2.4G WIFI

38±2dBm@5.8G WIFI


4

Effective range

(radius)

20~80MHz:≥150meter(radius)@ RC range 200 Meters RC range no more than 300M
    136~174MHz,230~520MHz:≥150 meter(radius) @ RC range 200 meters Analog walkie talkie transmission power is not greater than 5W
    GSM:≥150M(radius)@≤-70dBm(RSSI)
    CDMA:≥150 Meters(radius)@≤-75dBm(RSCP)
    3G:≥60M(radius)@≤-75dBm(RSCP)
    4G:≥60M(radius)@≤-70dBm(RSSI)
    2.4G WIFI:≥200 Meters(radius)
    5.8G WIFI:≥200 Meters(radius)
5 Antenna 20~100MHz:Omnidirectional antenna 2
    230~520MHz:Omnidirectional antenna 1
    CDMA450:Omnidirectional antenna 1
    CDMA800/ GSM900, GSM1800/CDMA1900/4G,WCDMA,2.4G WIFI:Omnidirectional antenna 2
    5.8G WIFI:Omnidirectional antenna 2
6 Initialization time ≤10 seconds
7 Power supply AC220V/50Hz or Battery
8

Battery life



No battery
9 Equipment size
  Weight TBD
  Waterproof grade Not waterproof
10 Working temperature -5~55°C
