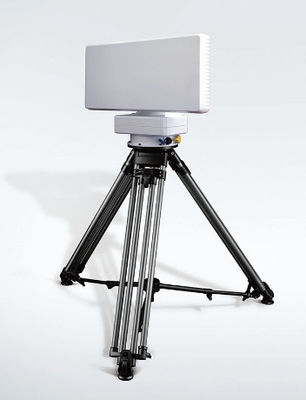

TWS Track Chirp 160W 5km Drone Radar Detector

1
MOQ
TWS Track Chirp 160W 5km Drone Radar Detector
Features Gallery Product Description Request A Quote
Features
Specifications
Wave Band: Ku
Weight: ≤23kg
Mini UAV (RCS=0.01m²): 5Km
Display Range: 0.075~20km
Name: Drone Radar Detector
Azimuth Angle: 0°-360° Scan
High Light:

COFDM modulation Drone Radar Detector

,

highly integrated digital drone jammer

Basic Infomation
Place of Origin: China
Brand Name: CTS
Model Number: DR01
Payment & Shipping Terms
Delivery Time: 4 weeks
Payment Terms: T/T
Supply Ability: 10PCS/MONTH
Product Description

Drone radar detector and digital drone jammer are independently developed by us, with technical and price advantages and guaranteed after-sales service

Radar part Key Features

* COFDM modulation

* H.264 video compression

* Full HD resolution,very sharp image

* Modular design and highly integrated

* Support 1 channel av signals receiving at the same time.

* Dual aerial designed for better signal receive

* Built in with DVR.Standard 17inch Samsung LCD screen

* The left space for PC place easy to carry together with the RX

* Internal with 120G SSD memory

* Can control operation system by using external mouse.

* Work well under fast moving signal receiving and support NLOS transmission

* If add Ethernet output that can support remote control, dynamic IP and can realize IE brows

* Extra USB insert easy to copy the video.

Technical parameters

Model DR01
Overview
Wave band Ku
Process technology chirp
Scan method Azimuth machine scan+Euler frequency scan
Weight ≤23kg
Size 610×450×270(mm)
Power consumption ≤160W
Basic detection performance
Display range 0.075~20km
Azimuth angle 0°-360° scan
Euler angles 0°-40°
Measurement dimension Distance / Azimuth angle / Euler angles / Speed
Detection distance
Mini UAV (RCS=0.01m²) 5Km
Detection accuracy
Distance accuracy ≤8m
Azimuth accuracy ≤0.8°
Euler accuracy ≤0.5°
Resolving power
Detection Resolving power ≤20m
Azimuth Resolving power ≤2.5°
Euler Resolving power ≤4°
Track method TWS / continuous track
Number of track targets No less than 200
Map data Stackable map
