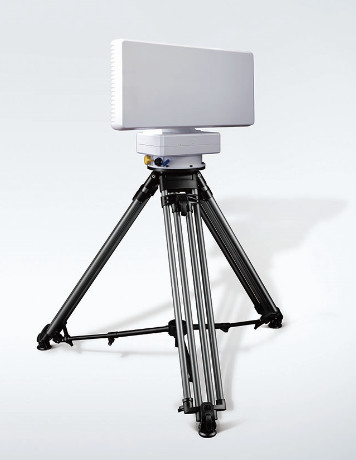

TWS Track Chirp 160W 5km Drone Radar Detector

I'm Online Chat Now

TWS Track Chirp 160W 5km Drone Radar Detector

China TWS Track Chirp 160W 5km Drone Radar Detector supplier
TWS Track Chirp 160W 5km Drone Radar Detector supplier TWS Track Chirp 160W 5km Drone Radar Detector supplier

Large Image :  TWS Track Chirp 160W 5km Drone Radar Detector

Product Details:

Place of Origin: China
Brand Name: CTS
Model Number: DR01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 4 weeks
Payment Terms: T/T
Supply Ability: 10PCS/MONTH
Contact Now
Detailed Product Description
Wave Band: Ku Weight: ≤23kg
Mini UAV (RCS=0.01m²): 5Km Display Range: 0.075~20km
High Light:

Chirp Drone Radar Detector

,

160W Drone Radar Detector

,

5km Digital Drone Jammer

Drone radar detector and digital drone jammer are independently developed by us, with technical and price advantages and guaranteed after-sales service

Radar part Key Features

  • 3D mechanical scanning radar, Multi group Sum beam Difference beam.
  • Improves the “low small slow” target detection capability while reducing the radar’s transmit power at the same discovery distance.
  • Distinguish between ground and air targets.
  • Can work around the clock in harsh environments.
  • Multi-point operating frequency, using the same-frequency interference suppression technology to avoid co-channel interference.

Technical parameters

Model DR01
Overview
Wave band Ku
Process technology chirp
Scan method Azimuth machine scan+Euler frequency scan
Weight ≤23kg
Size 610×450×270(mm)
Power consumption ≤160W
Basic detection performance
Display range 0.075~20km
Azimuth angle 0°-360° scan
Euler angles 0°-40°
Measurement dimension Distance / Azimuth angle / Euler angles / Speed
Detection distance
Mini UAV (RCS=0.01m²) 5Km
Detection accuracy
Distance accuracy ≤8m
Azimuth accuracy ≤0.8°
Euler accuracy ≤0.5°
Resolving power
Detection Resolving power ≤20m
Azimuth Resolving power ≤2.5°
Euler Resolving power ≤4°
Track method TWS / continuous track
Number of track targets No less than 200
Map data Stackable map
