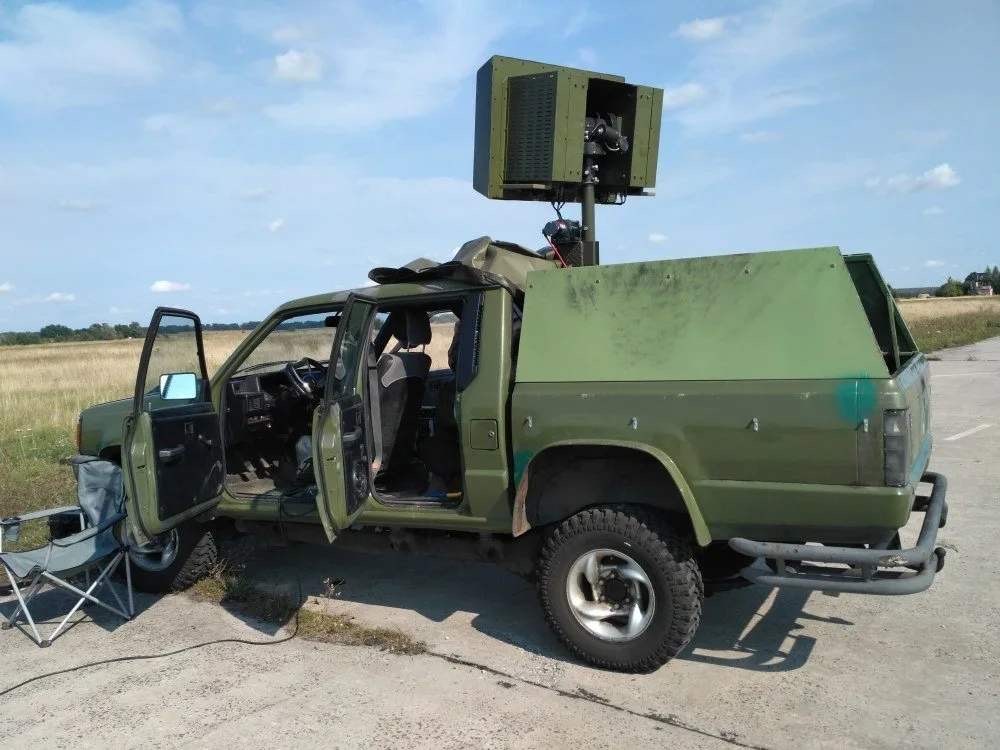

30° Phase Sweep 10.2GHZ 100KM UAV Radar Detector

1
MOQ
30° Phase Sweep 10.2GHZ 100KM UAV Radar Detector
Features Gallery Product Description Request A Quote
Features
Specifications
Working Frequency Range: 9ghz ~ 10.2ghz (tentative)
Cover Range: Upto 100Km
Jamming Range: 30KM Direction
Jamming Frequency: All Gps And Gnolass Frequency
High Light:

10.2GHZ UAV Radar Detector

,

100KM UAV Radar Detector

,

30° Phase Sweep Drone Jammer

Basic Infomation
Place of Origin: China
Brand Name: CTS
Model Number: CTS-RDJ
Payment & Shipping Terms
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 10 pcs/40 working days
Product Description

About radar

Development basis
GJB 74A-1998
GJB 150A-2009
GJB 151A-1997
GJB 152A-1997
GJB 450A-2004

Functional indicators
(1) It can detect and track multiple batches of fixed wing (bayraktar) and multi rotor UAVs in real-time;
(2) It can output target information (range, pitch, azimuth, speed, threat), display target plot, track and radar status information
(3) It can record and save target plot track data and radar status data;
(4) It can play back the recorded plot;
(5) It has automatic admission function;
(6) With warning area setting and alarm function, it can manually set the area and alarm options, and provide icon flashing and sound alarm;
(7) Users can set the radar silent azimuth angle to avoid electromagnetic interference to peripheral equipment;
(8) It has the function of leveling and north seeking;
(9) Support preset several working waveforms for calling;
(10) Provide simulation and debugging interface for DSP, FPGA and other programmable chips in signal processing module
(11) The radar has self-test function and can feed back fault report, including signal processor and wave controller
(12) Have the ability to detect the earth and sea.

(1) Working frequency range: 9ghz ~ 10.2ghz (tentative))
(2) Radar system: pulse system
(3) Operating distance:100km(False Alarm Probability 10-6,detection probability 90%).
Coverage
a) Azimuth:
i) Phase sweep range:±30°
b) Pitch:
i) Mechanical adjustment range:0°~35°(Lean forward)
ii) Frequency sweep range:25°
(4) Close range blind area:≤1km
(5) Detectable target velocity:0-200km/h;
(6) Number of targets processed at the same time:≥100个;
(7) Leveling angle error of support platform:≤0.2°;
(8) North seeking angle error:≤2°;(External equipment and reserved interface)

Super range gps GLONASS jammer
  • Jamming drones GPS or GLONASS navigation signal range up to 25KM all in one machine
  • Include GPS L1/L2,Include military and civil frequency GLONASS L1/L2,Include military and civil frequency
  • Jamming source :Cross digital jamming source
  • Jamming range upto 30Km direction
