Product Details:

Place of Origin: China
Brand Name: SHYT
Certification: SGS, ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Delivery Time: 10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Jamming Radius: 2000~3000M Power: 15W
Source: Digital Antennas: Directional Yagi Antennas

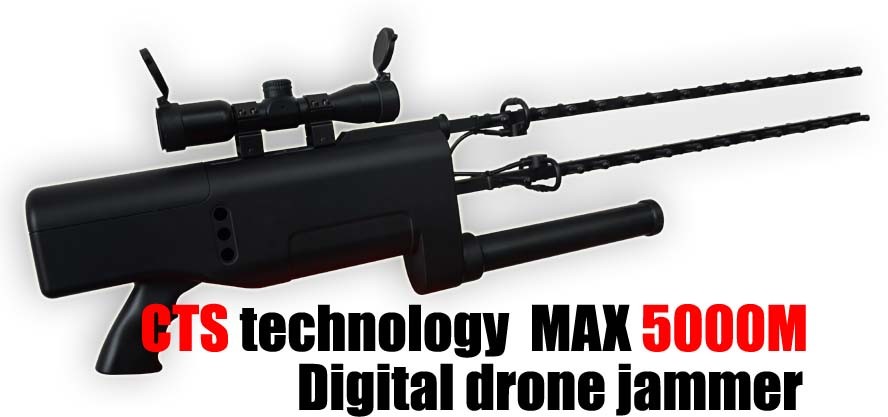

Digital source Drone Jammer special for military long range used





1). It can effectively remote interfere the control signal of small drone with slow speed and low height like wireless remote control drones and drones with GPS, Glonass, Beidou navigation system. The interfered drones will not be remote controlled and go back to the starting point or land.

2). Once the illegal drone is found to be close to or entry the warning area, the jammer will directional jam them



Features:


1. Signal Source: Digital gaussian white noise technology
High integration & Stable operation.
2. highly effective power & long jamming distance
3.
Portable type, very easy to take by one man.

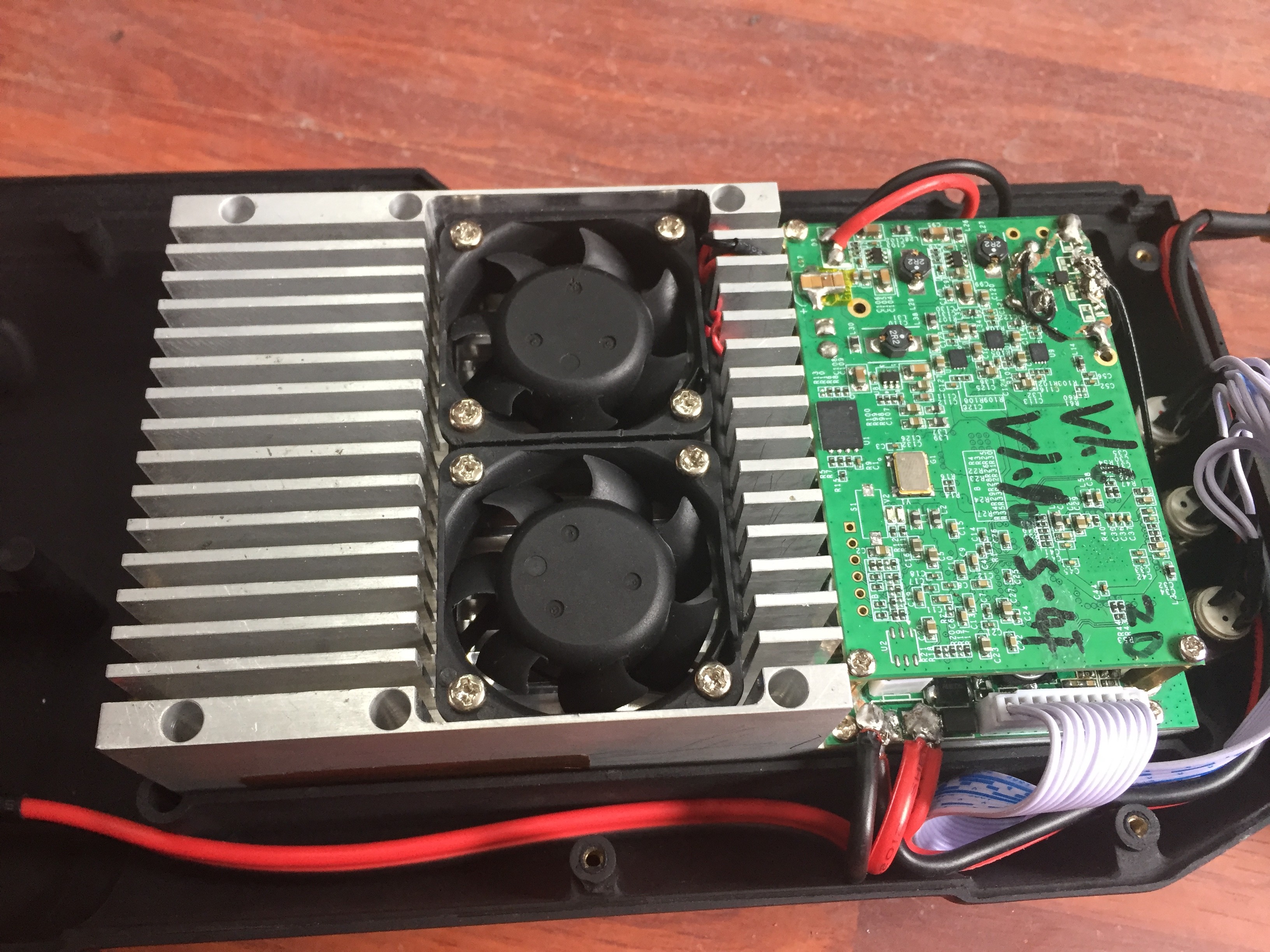

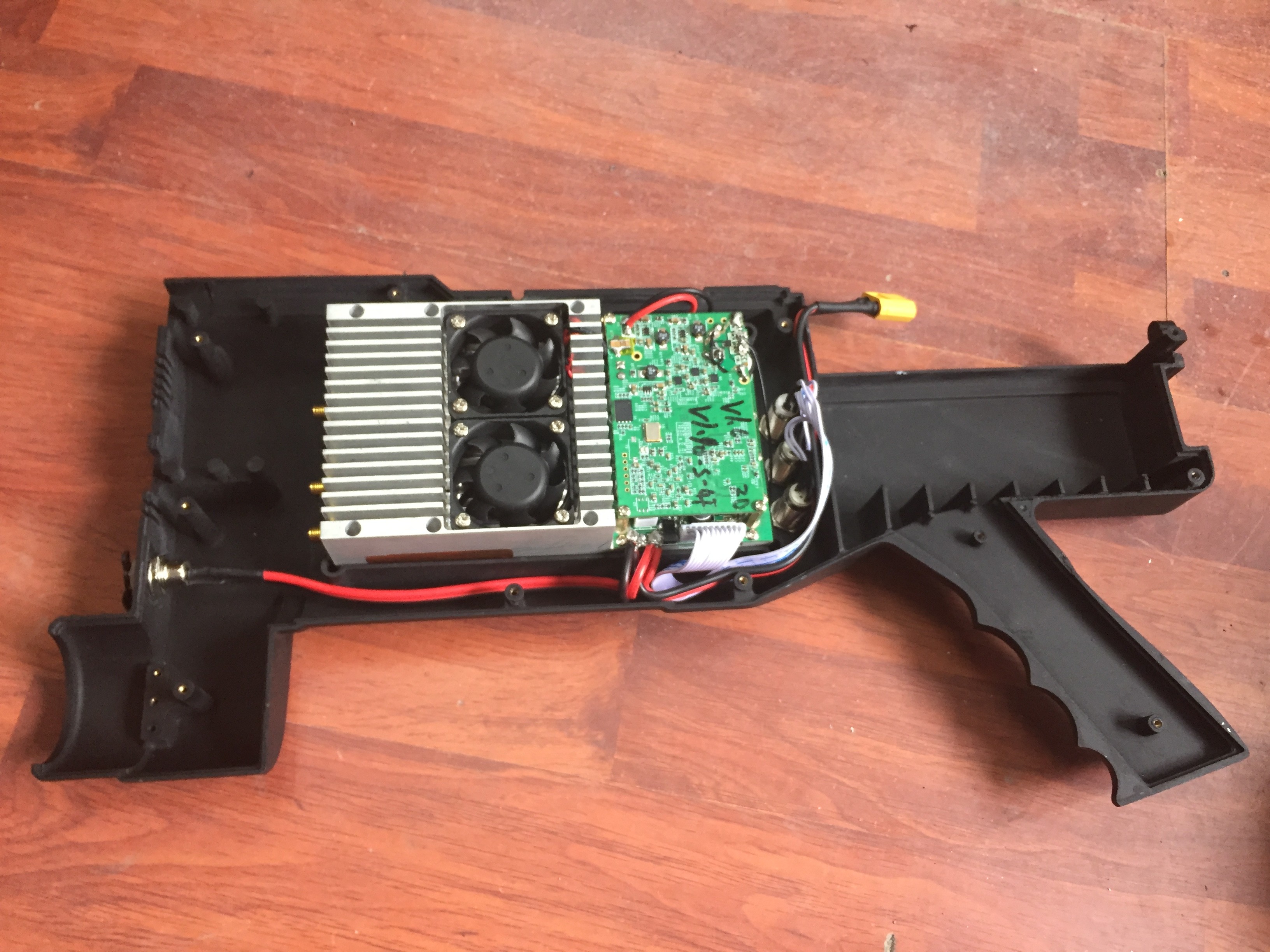

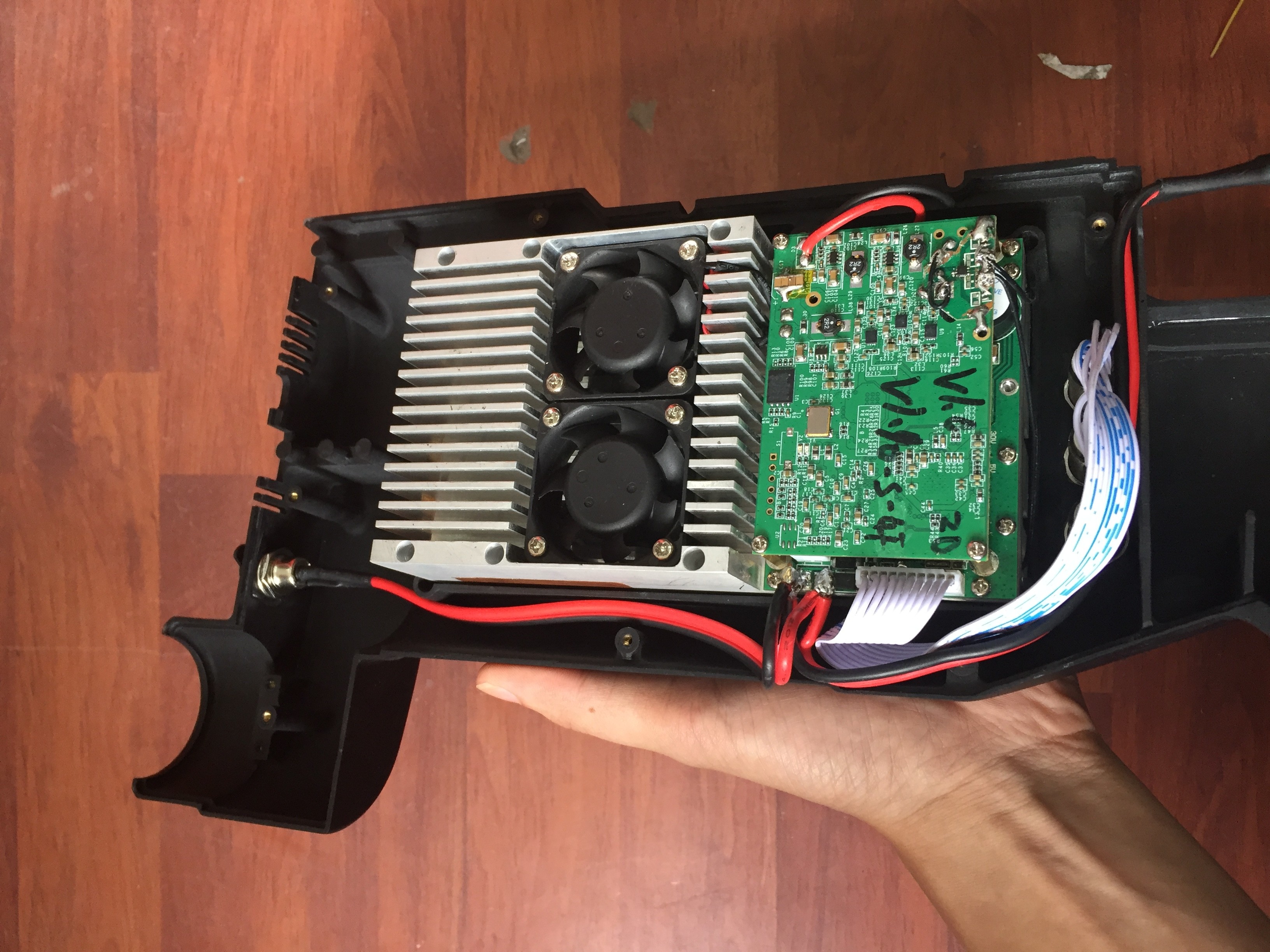

4. High quality tubular radiator, effective in radiating heat.
5. Import components; the moderating circuit-starting design avoids a spark,

when the device turn on/off.
6. Batteries are separate from the main device, easy to be replaced and maintained.









Channel   working frequency Output power(±1dBm)
CH1 2.4G 2400-2485MHz 37 dBm
CH2 5.8G 5725-5850MHz 34 dBm
CH3 GPS L1 1573-1607MHz(GPS,GLONASS) 37 dBm
Build-in battery 25.9V, 3.7 A ( min 1h working)
Signal Source Digital gaussian white noise technology
jamming radius Up to 2000m
Antennas Directional Yagi Antennas
Output Power 13W
Power consumption 50W
Main engine weight 6Kg
Size 125×30×12cm
Humidity 30%-95%
Running temperature -20℃ to +50℃
