Ultra-High Performance Wideband Microwave Tuner

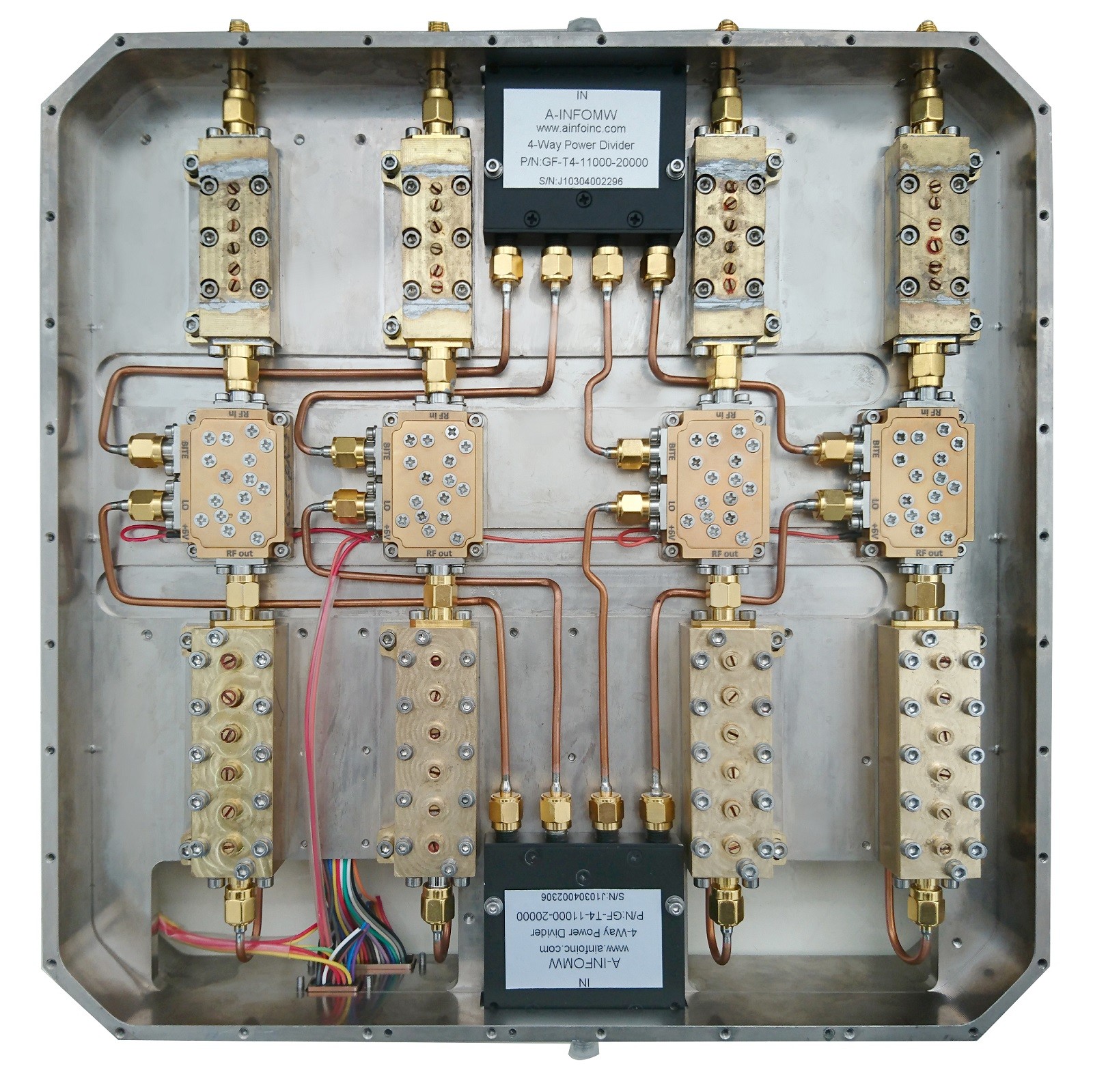

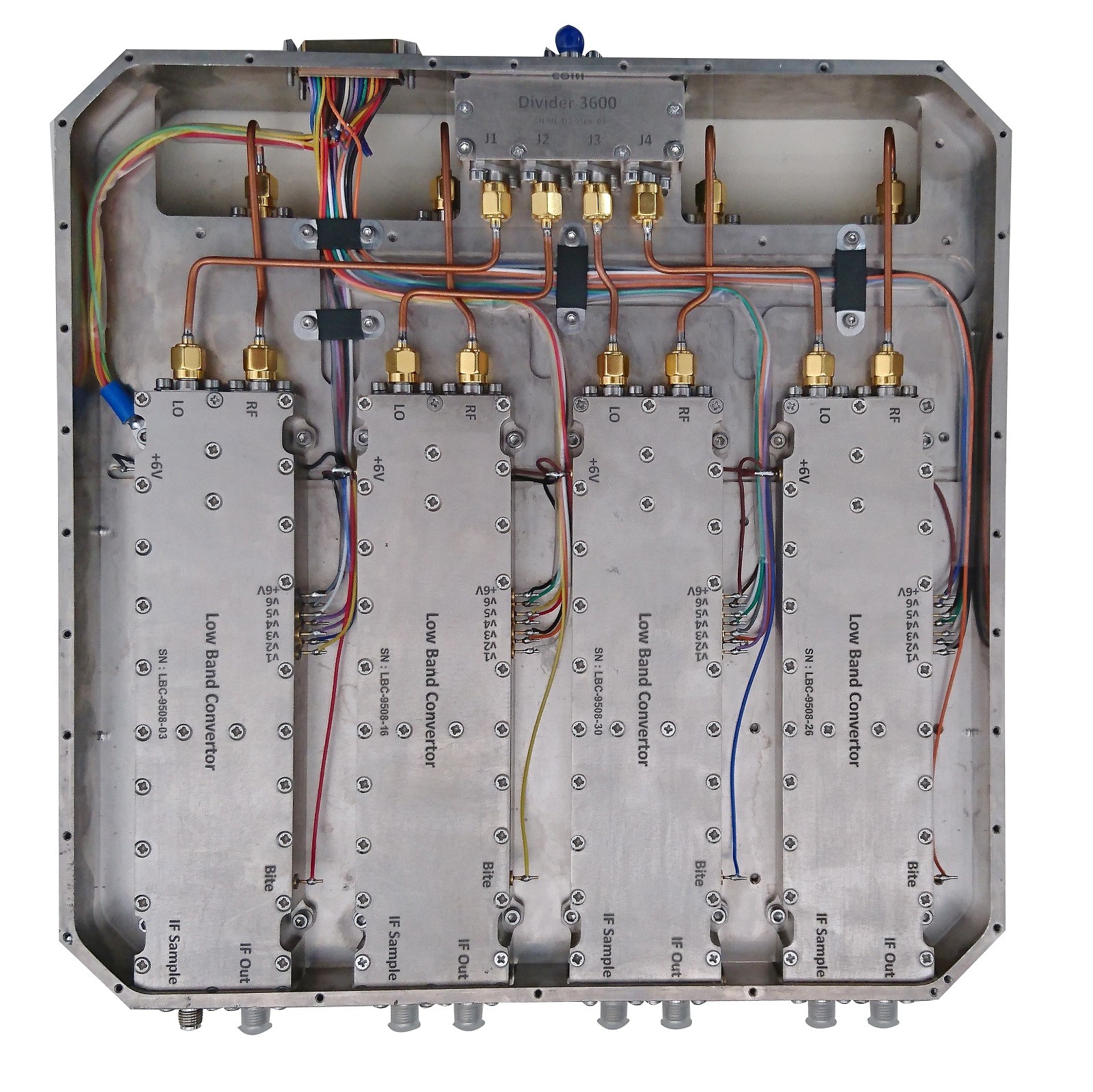

The TU-BCBIV1 Microwave Tuner is an ultra-high performance wideband microwave tuner .The RF down converter used in conjunction with the DDS based direct synthesizer module creates a microwave tuner featuring low phase noise and extremely fast tuning speed. This technology uncouples tuning speed from phase noise.
The TU-BCBIV1 is capable of tuning over the entire 12 to 18 GHz range providing both narrowband and wideband outputs, respectively. The analog outputs are suitable for direct input into an external A/D converter for special signal processing, spectral analysis or pulse. The TU-BCBIV1 functions for both single and multichannel (frequency and amplitude coherent) systems. This is accomplished using a self-contained LO distribution system. This feature makes the TU-BCBIV1 the tuner of choice for beam forming and direction fnding systems, and for a wide range of scanning/acquisition ELINT and/or EW applications.
Features:
• 12 GHz to 18 GHz tuning range
Outputs:
• 160 MHz IF (80, 40, 20 MHZ BW)
• Log video (derived from 160 MHZ IF)
• High dynamic range
• Switched lter preselection
• Excellent phase noise
• Fast tuning
• External trigger input
• Single or multi-channel, frequency & amplitude
coherent operation
