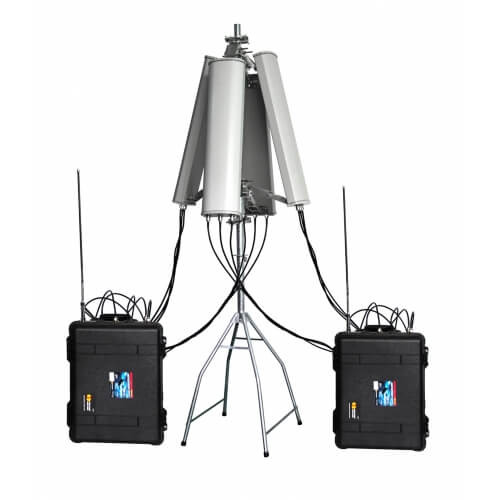

High Integration Drone Radio Jammer , Drone Signal Blocker 3000-5000M Range

I'm Online Chat Now

High Integration Drone Radio Jammer , Drone Signal Blocker 3000-5000M Range

China High Integration Drone Radio Jammer , Drone Signal Blocker 3000-5000M Range supplier

Large Image :  High Integration Drone Radio Jammer , Drone Signal Blocker 3000-5000M Range

Product Details:

Place of Origin: China
Brand Name: SHYT

Payment & Shipping Terms:

Delivery Time: 4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 pcs months
Contact Now
Detailed Product Description
Frequency: GPS 2.4 5.8 900 433 Mhz Range: 3000~5000M
Type: Portable Battery: Options

Portable Drone radio Jammer 2.4GHZ 5.8GHZ GPS L1 L2 433MHZ 900MHZ



Jamming Range radius 2000-6000+ meters
Cover Most Commercial Used Drones / UAVs 2.4Ghz 5.8Ghz GPS L1 , L2 433mhz, 900Mhz
Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series…

Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular
Power supply: AC adapter (AC 220V-DC 27V or 24V/45 Amp) or External Battery
Stand-alone modular design and individual power control.
Adjustable Output Power each Band/Channel
VSWR over protection for each modular.
Working status indicator for each band modular.
Pelican 1620 Case Raining Proof
Dimension:626 mm(L)×49.2mm(W)× 350mm(H)
Weight:45 Kg (approximately) just main unit
Operating temperature: -20℃ ~ +60℃
Humidity: 5% ~ 90%
Warranty: 1 year

One Directional HGA Antenna with three Bands cover 90 Degrees
Total per unit Two Directional Antennas that cover 180 Degrees

Tripod is not included in our prices
All other cables, antenna frame and antennas are included.
To cover 360 degree will need 2 units.

External Battery in order option:
B-50AH 27V/50AH LiFePo4 Battery USD$1800 per unit
Pelican Case 1440, 35kg Weight. Work 1-2 hours




Frequency/antennas specification 8 bands:
– One Directional HGA Antenna with Three Bands to Cover 90 Degrees
1. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 100W
2. 1570-1620MHz GPS L1 + GLONASS L1 100W
3. 5.7GHz-5.9GHz WiFi 11.a 20W
– One Directional HGA Antenna with Three Bands to Cover 90 Degrees
4. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 100W
5. 1570-1620MHz GPS L1 + GLONASS L1 100W
6. 5.7GHz-5.9GHz WiFi 11.a 20W
Total Two Directional Antennas to cover all 180 Degrees
7. RC 900Mhz 860-930Mhz 100W in 360 degree Omni Antenna with mag base
8. RC 433/434Mhz 100W in 360 degree Omni Antenna with mag base ( or GPS L2 100W )
TOTAL: 640W
