Backpack Military Drone Jammer Unmanned Aerial Vehicle Interference System 3000-5000M

I'm Online Chat Now

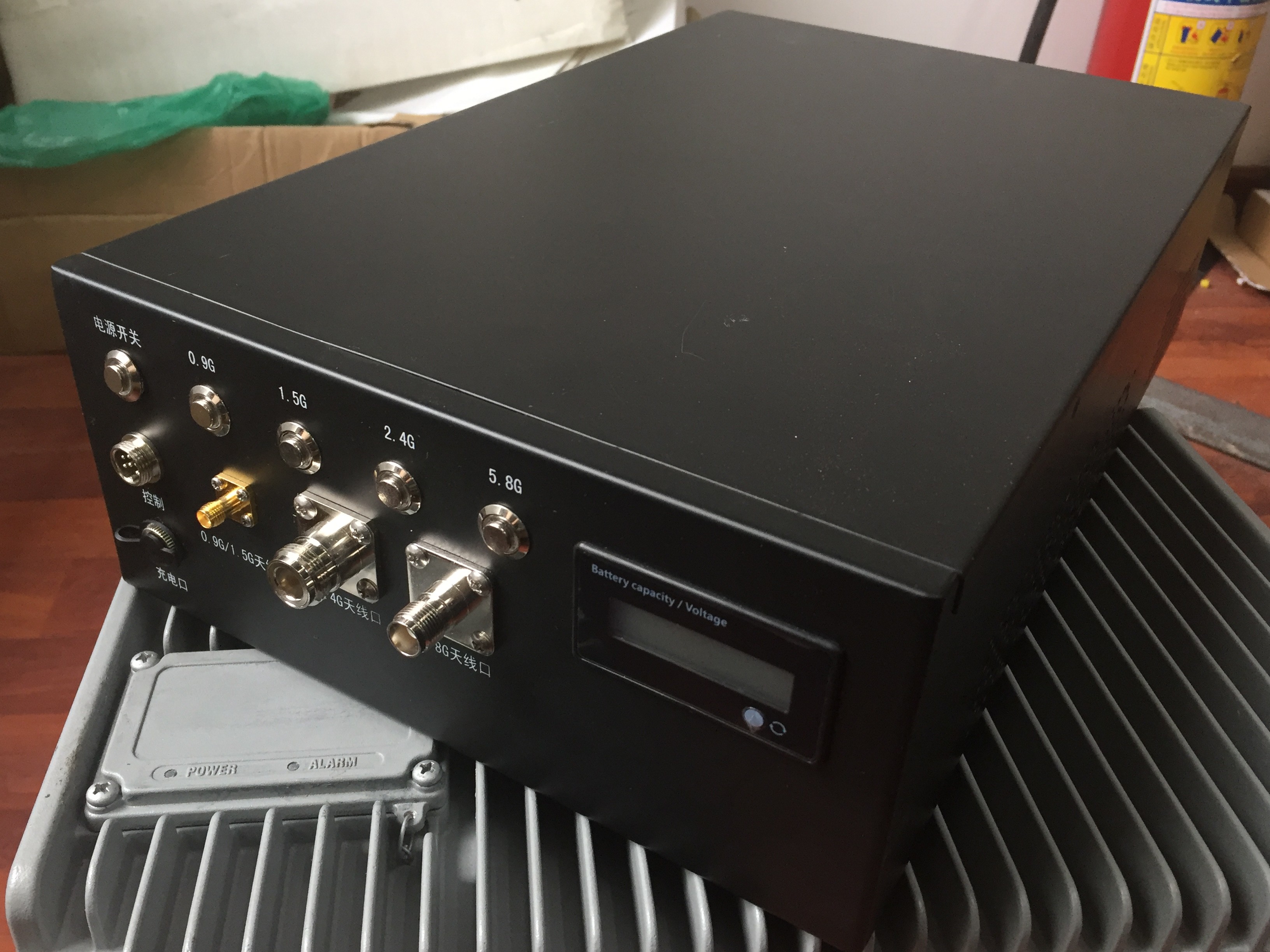

Backpack Military Drone Jammer Unmanned Aerial Vehicle Interference System 3000-5000M

China Backpack Military Drone Jammer Unmanned Aerial Vehicle Interference System 3000-5000M supplier

Large Image :  Backpack Military Drone Jammer Unmanned Aerial Vehicle Interference System 3000-5000M

Product Details:

Place of Origin: China
Brand Name: SHYT
Model Number: BPD5

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 2 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Type: Backpack Frequency: 900Mhz/1.5G-BDS/1.5G-GPS/1.5G-GLONASS/2.4G/5.8G
Range: 3000~5000M Antennas: 3 Antennas Cover 5 Bands

Portable Unmanned-Aerial-Vehicle-Interference-System digital Military drone jammer



Drones and UAV quadcopters are becoming an integral part of our life. People use them for different reasons. Someone buy them for joy, but there are more cases when people use drones to compromise peoples’ privacy. With the help of drones ill-wishers can take photos or make videos of your property.

Fight drones with anti drone – drone jammer



That 2017 new type digital drone jammer backpack type and can force super range drone uav down with digital technology (not a old VOC technology) for Military and security used

Backpack Military Drone Jammer Unmanned Aerial Vehicle Interference System 3000-5000M

Backpack Military Drone Jammer Unmanned Aerial Vehicle Interference System 3000-5000M

Backpack Military Drone Jammer Unmanned Aerial Vehicle Interference System 3000-5000M

Backpack Military Drone Jammer Unmanned Aerial Vehicle Interference System 3000-5000M

Electrical technical specification
Serial specification Requirement Remark
1 Frequency 1559~1564MHz(1.5G-BDS) 1.5G satellite navigation
1574~1577MHz(1.5G-GPS)
1598~1606(1.5G-GLONASS)
2.4G:2400~2484MHz 2.4G RC & Video
5.8G:5725~5850MHz 5.8G RC & Video
2 Jamming source digital signature jamming source
3 Output port Gain 43±2dBm@1.5G
43±2dBm@2.4G
41±2dBm@5.8G
4 Antennaquantity Frequency:2400~2500MHz 2.4G Yagi array antenna
Gain:15±2dBi
Radiation lobe angle:level 55±5° vertical 40±5°
quantity :8 pcs
frequency:1510~1610MHz 1.5G Yagi array antenna
gain:10±2dBi
Radiation lobe angle:level 60±5° vertical 50±5°
quantity :8 pcs
frequency:5725~5850MHz 5.8G Yagi array antenna
Radiation lobe angle :14±2dBi
Radiation lobe angle:level 55±5° vertical 40±5°
quantity :8 pcs
5 Power initialization time 15 second
6 Power supply AC:220+30%-40%V
7 Waterproof grade IP63
8 Working environment temperature -25~60°C
